Home Product Center X Ray Source LXB-80-48B1-D

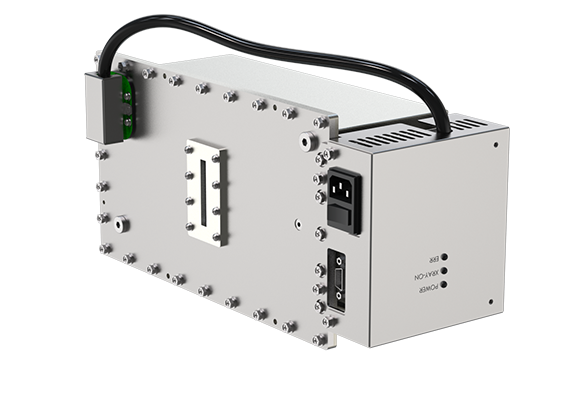

BackLXB-80-48B1-D

Applications: Security Scanning

Brief Introduction

First choice for public security, wide range of KV values provides more choices for different applications. A compact and lightweight monoblcok is adopted. Incorporates filament power supply, high voltage generator and X-ray tube in a tank, and integrate the combination of DB9 power socket which is easy for users to operate. The unique internal structure design and digital control technology make the product have excellent stability and longer service life than expected

· 80kV, 140kV, 160kV total 3 models.
· Continuously adjustable voltage and current.
· Small and flexible, easy to install.
· RS232 communication, easy integration.
· Excellent long-term stability and reliability.
  • DSP Control

  • Small Cubic Size

  • More Safety

  • Long Lifespan

Data Sheet

Item Description
Input Line Voltage
180~240Vac, 50/60Hz
Output kV Range
40~80kV
Output Voltage Accuracy
The voltage error on the x-ray tube does not exceed 1.5% of the set value.
Output kV Ripple
Low frequency ripple(<1kHz) is less than 0.5% of rated output voltage (Pk-Pk)
lnput Voltage Regulation
<0.1%
Load Regulation
≤0.1%, rated output current (when the output voltage changes from 40kV to 80kV)
KV Regulation Accuracy
0.1kV
Output mA
0.3~0.6mA(rated power 48W)
Protection Circuit
Over-current protection, Over-voltage protection, Over-temperature protection,
Over-power protection, Communication fault protection
F/S
0.8mm (IEC-60336)
Certificates
Designed to meet CE and UL
Operating Mode
Continuous or Intermittent
Warm Up
Configurable automatic warm up or manual warm up (default manual warm up)
Operating Temperature
0-40℃
Storage Temperature Range
-20-60℃
Humidity
<95%, non-condensing
Dimensions (W*D*H)
346*169*148mm
Weight KG
<16kg
Radiation Filter
1.5mm (Glass) 6mm (Oil) (Same ltems Result) 2mm (Plastic)
Beam Port
Fan Beam 12°*65°
Cooling
External forced air cooling

Dimension
