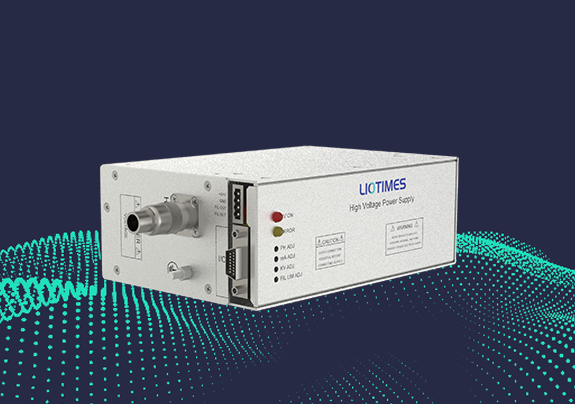

The LPM-50P50B1 is a high-performance power module delivering adjustable output up to 50kV/1mA with ultra-low ripple (≤0.1%). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports RS-232/RS-485 communication for seamless system integration. The compact module (3.5kg) incorporates comprehensive safety features, including interlock protection and forced-air cooling for reliable operation.
This power module is specifically designed for industrial X-ray inspection systems, medical diagnostic equipment, and high-voltage testing applications. Its robust construction and flexible control options make it particularly suitable for integration into automated production lines and quality control systems where stable, high-voltage power is essential for precise testing and measurement processes.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~50kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 50W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

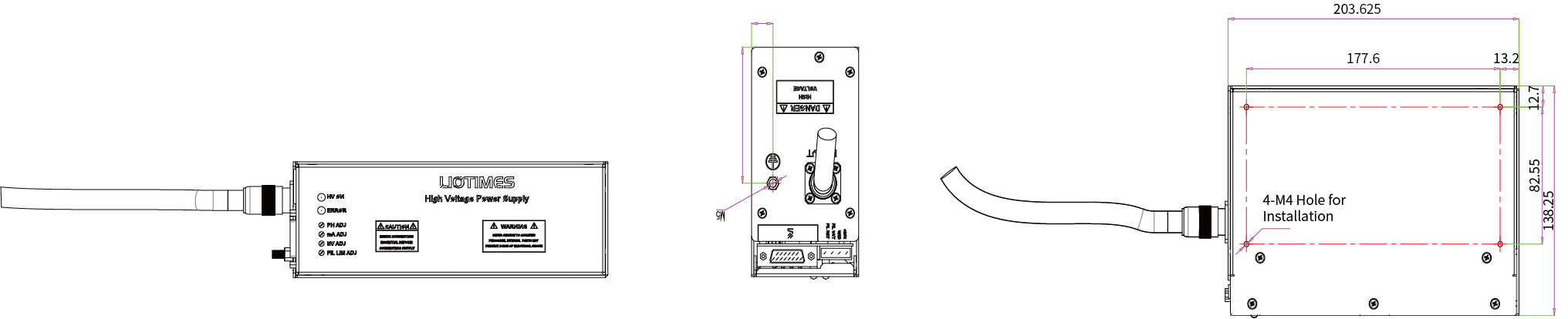

Dimensions |
75*139*218mm |
|
Weight |
3.5kg |
