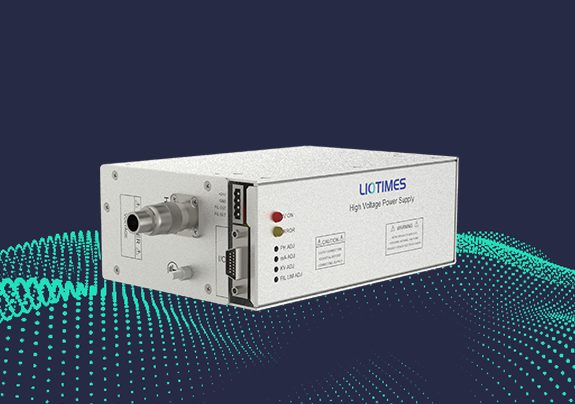

The LPX-65P65B3 delivers precision high-voltage performance with adjustable output (0-65kV/1mA) and exceptional stability (ripple ≤0.1%). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports RS-232/RS-485 communication for system integration. The unit offers a temperature coefficient of ≤25ppm/°C and comprehensive protection, including interlock and overload safeguards.
This high-voltage power supply is ideally suited for medical diagnostic equipment, industrial non-destructive testing systems, and advanced physics research applications. Its reliable performance makes it particularly valuable for X-ray imaging systems, electron microscopy, and materials analysis instruments where stable high-voltage power is critical. The compact design and customizable features allow for flexible integration into specialized laboratory setups and industrial production lines.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~65kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 65W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr, less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

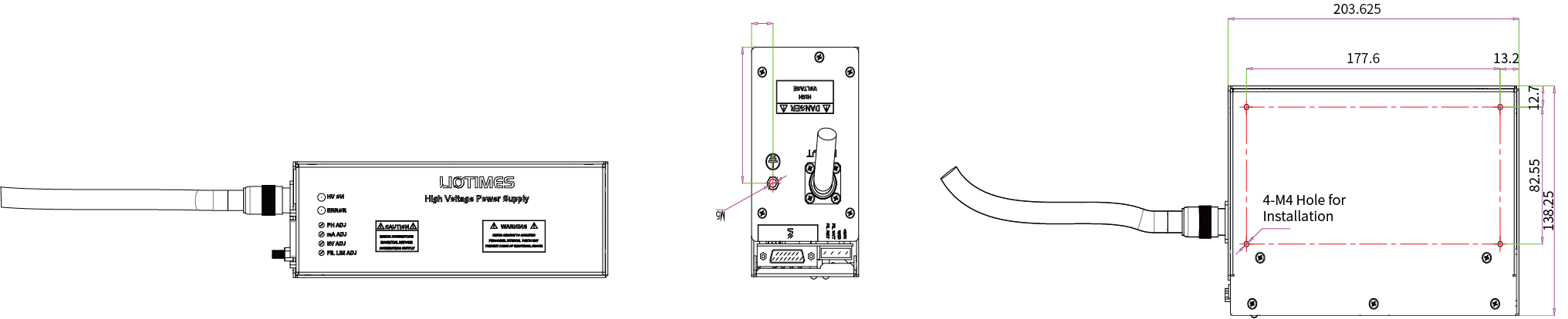

Dimensions |
75*139*218mm |
|
Weight |
3.5kg |
