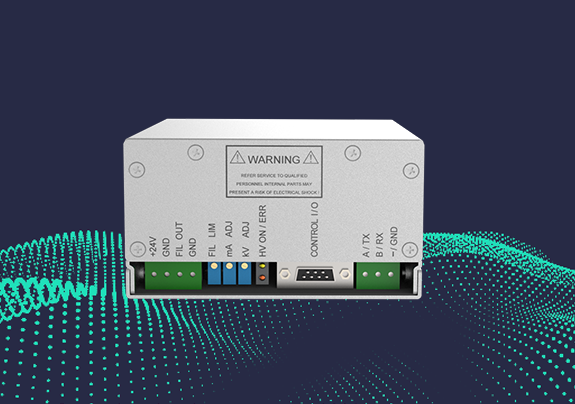

The LPX-20P20B3 delivers reliable high-voltage performance with adjustable output up to 20kV/1mA and ultra-low ripple (≤0.1%). Featuring dual analog/digital control with both local potentiometer adjustment and remote 0-10Vdc signal input, it supports multiple communication protocols including CAN, RS-232, and RS-485. The compact unit (1.6kg) incorporates comprehensive safety features, including interlock protection and natural cooling capability.
Ideal for benchtop laboratory equipment and portable testing devices, this power supply is particularly suitable for analytical instruments, small-scale electron beam systems, and low-power X-ray applications where space efficiency and stable high-voltage output are critical requirements. Its versatile design makes it an excellent choice for research and educational applications as well.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 2.0A |
|
Output Voltage Range |
0~20kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 20W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

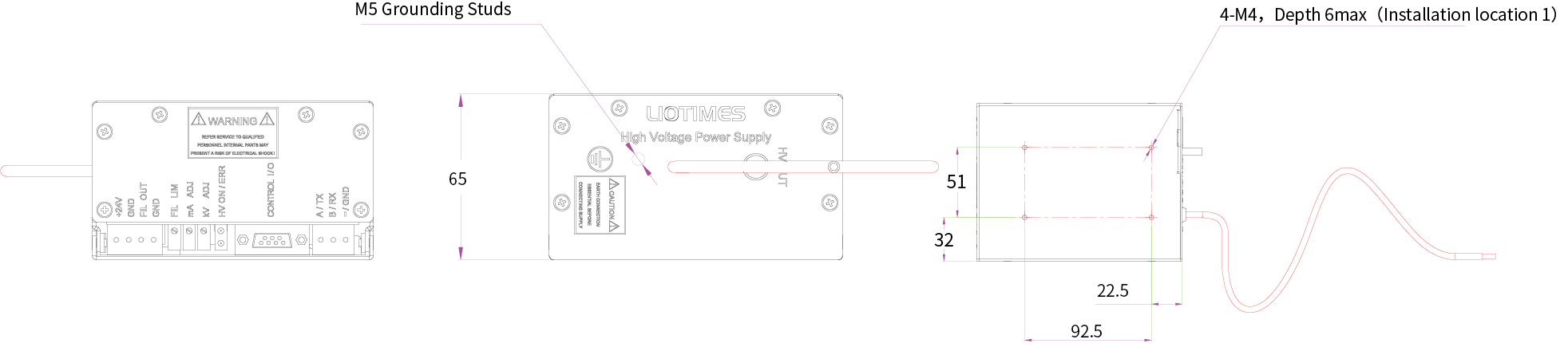

Dimensions |
65*115*165mm |
|
Weight |
1.6kg |
