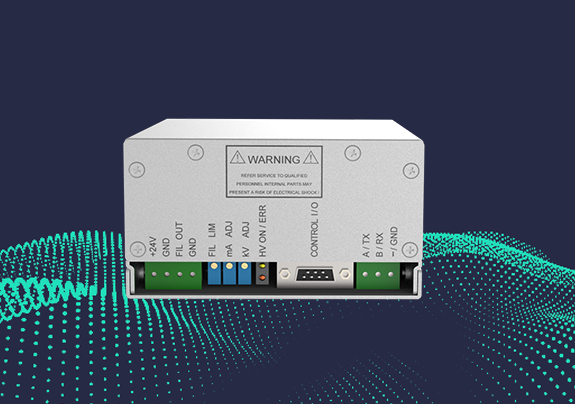

The LPX-10P10B3 is a compact and reliable high-voltage power supply offering adjustable output up to 10kV/1mA with exceptional stability (≤0.1% ripple). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports multiple communication protocols including CAN, RS-232, and RS-485. The lightweight unit (1.6kg) incorporates comprehensive safety features including interlock protection and natural cooling capability.
Perfect for educational laboratories and small-scale research applications, this power supply is particularly suitable for physics experiments, material testing, and low-voltage electron beam systems where compact size and precise voltage control are essential. Its versatile design also makes it ideal for industrial quality control applications requiring stable high-voltage output in space-constrained environments.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 2.0A |
|
Output Voltage Range |
0~10kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 10W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

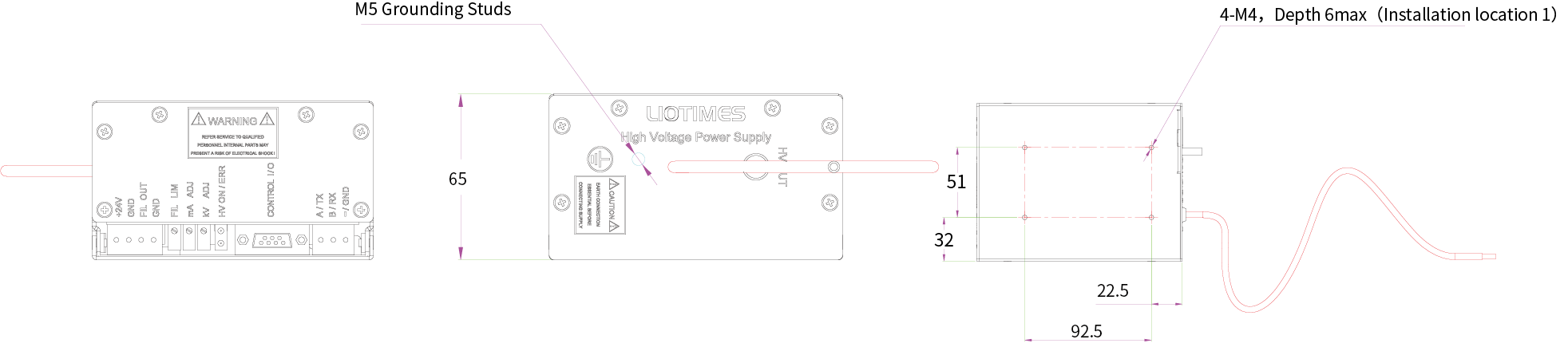

Dimensions |
65*115*165mm |
|
Weight |
1.6kg |
