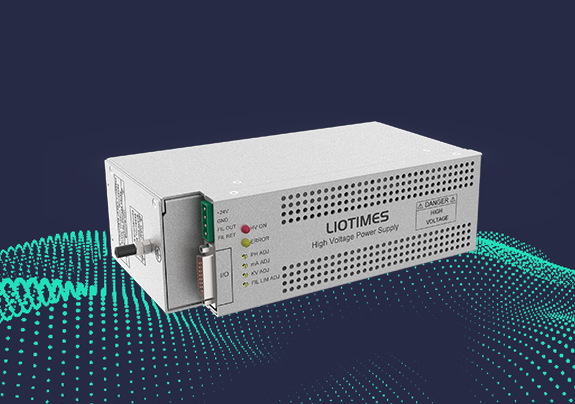

The LPS-70P70B3 is engineered for demanding high-voltage applications, delivering superior performance with adjustable output (0-70kV/1mA) and exceptional stability (ripple ≤0.1%). Featuring both analog and digital control options, it supports local potentiometer adjustment and remote 0-10Vdc signal control, while offering communication interfaces including RS-232 and RS-485 for system integration. With high precision (≤25ppm/°C temperature coefficient) and robust protection functions, this power supply ensures reliable operation in various environments.
Perfect for industrial testing, medical imaging systems, and advanced research applications, the LPS-70P70B3 excels in X-ray generation, electrostatic processes, and laboratory experiments. Its compact design (127×73×269mm) and comprehensive safety features, including interlock protection and overload safeguards, make it an ideal choice for critical operations requiring stable high-voltage power. Customization options are available to meet specific application requirements.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~70kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 70W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr, less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

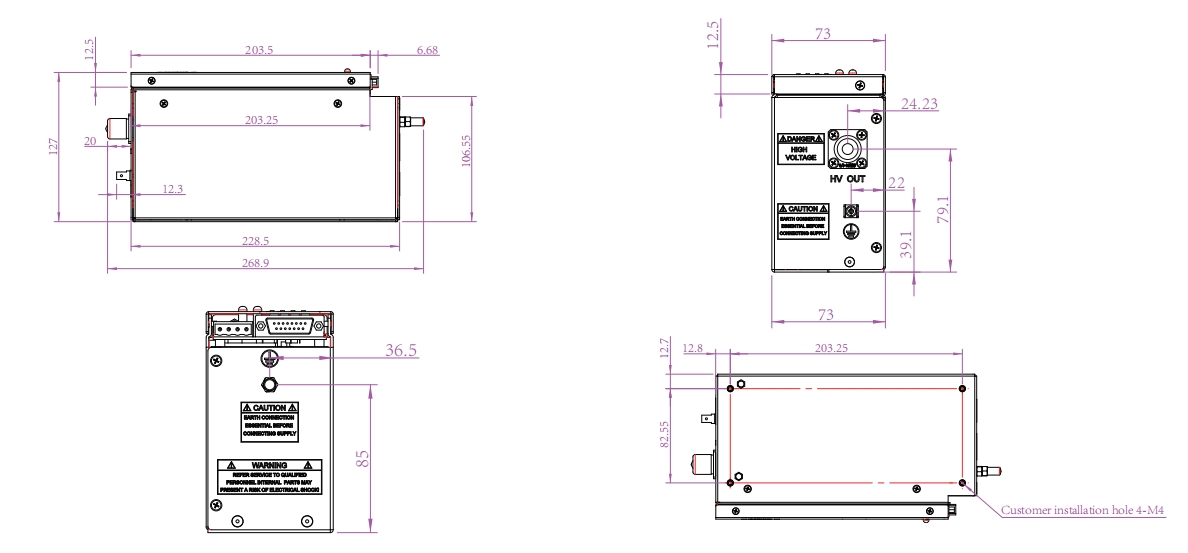

Dimensions |
127*73*269mm |
|
Weight |
3.5kg |
