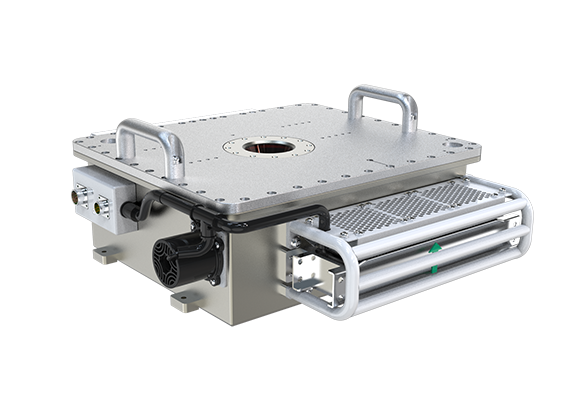

The 45-degree cone angle window is maximized to provide a wide coverage of radiation area for detection objects in a wide range of industrial applications. The control box integrates DB9 button, power socket and indicator light for easy operation, and uses serial port to connect digital communication, which has high reliability and meanwhile also has imperceptible responsiveness. The large KV value realizes super penetrating power to objects, and the excellent heat dissipation capability ensures high-power operation. The external structure considers the installation methods in various scenarios, and is truly user-friendly.
DSP Control
Small Cubic Size
More Safety
Long Lifespan
| Item | Description |
| Input Line Voltage |
100~240Vac, 50/60Hz
|
|
Output kV Range
|
60~160kV
|
|
Output Voltage Accuracy
|
The voltage error on the x-ray tube does not exceed 1.5% of the set value.
|
|
Output kV Ripple
|
Low frequency ripple(<1kHz) is less than 0.5% of rated output voltage (Pk-Pk)
|
|
Input Voltage Regulation
|
<0.1% |
|
Load Regulation
|
≤0.1%, rated output current (when the output voltage changes from 80kV to 200kV)
|
|
KV Regulation Accuracy
|
0.1kV |
|
Output mA
|
0.3~3.125mA (rated power 500W)
|
|
Protection Circuit
|
Over-current protection, Over-voltage protection, Over-temperature protection,
Over-power protection, Communication fault protection
|
|
F/S
|
0.8mm (IEC-60336)
|
|
Certificates
|
Designed to meet CE and UL
|
|
Operating Mode
|
Continuous or Intermittent
|
|
Warm Up
|
Configurable automatic warm up or manual warm up (default manual warm up)
|
|
Operating Temperature
|
0-40℃ |
|
Storage Temperature Range
|
-20-60℃ |
|
Humidity
|
<95%, non-condensing
|
|
Dimensions (W*D*H)
|
415*522*132mm
|
|
Weight KG
|
43kg
|
|
Radiation Filter
|
1.5 (Glass) 6 (Oil) (Same Result) 2 (Plastic)
|
|
Beam Port
|
Cone Beam 45°
|
|
Cooling
|
External Forced Air Cooling
|
